Petrochemical

As-built drawing (3D scanning and modeling) for a plant in the petrochemical industry.

Video

Key challenges

Produce as-built drawings of existing piping and equipments of the plant for the installation of new equipments.

Services rendered

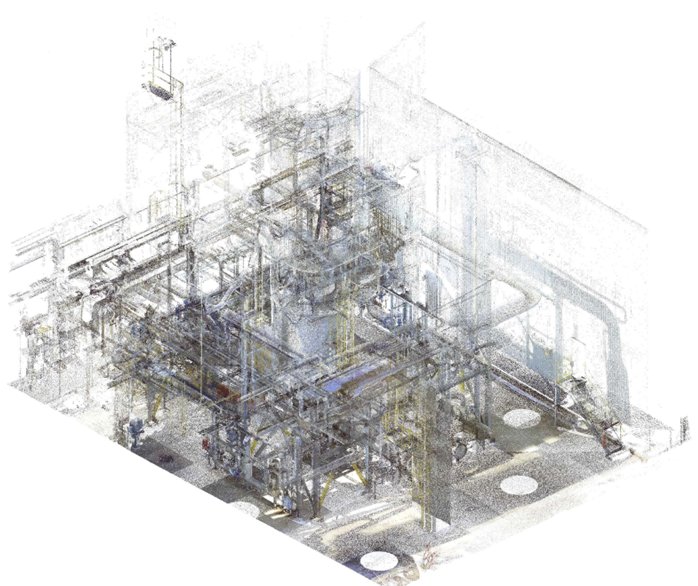

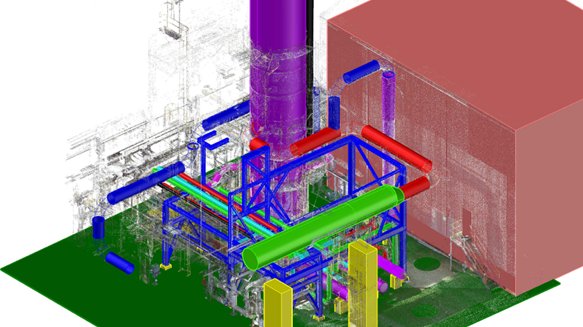

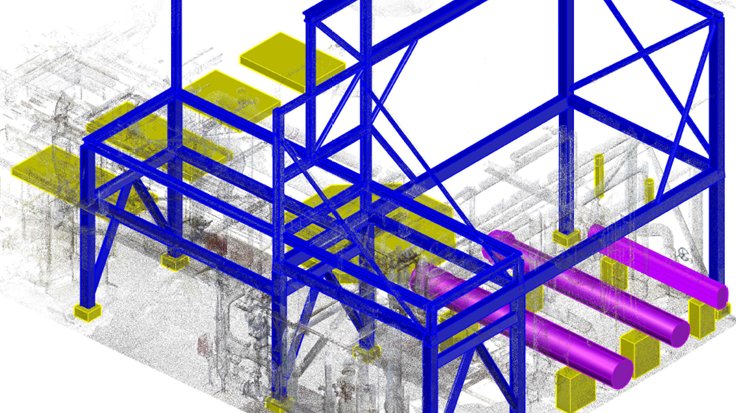

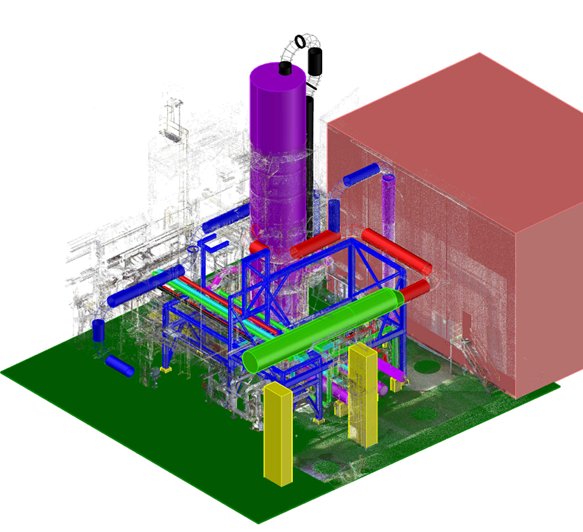

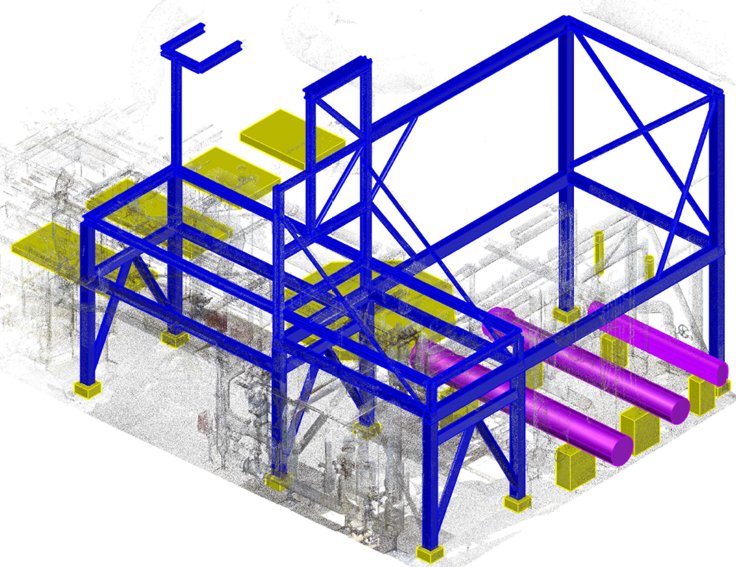

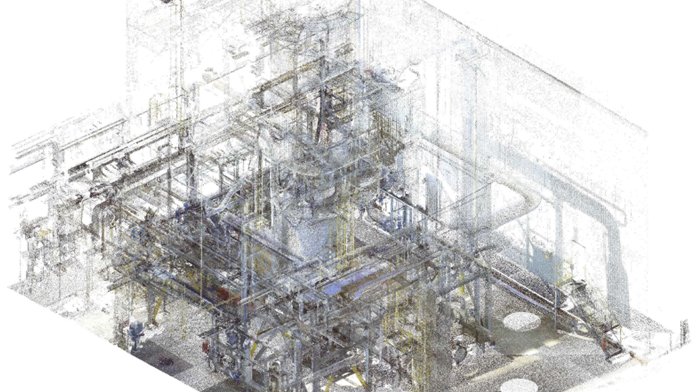

3D scan of the installations, point cloud, 3D modeling.

Spinoffs

Our services allowed the client to save a lot of time and money for the survey of the plant and the equipments and the measures were extremely precise. The point cloud and 3D model provided can be used for other future projects.
